DirecTV Dual LNB 18LNBR0 18" Antenna LNBF
by RCA
Price: $12.99
Features:
- Superior Low Noise
- Compatible with US direct TV system
- Excellent isolation
Product description
A DirecTV Dual LNB for 18 inch dish .
Strong HD LNB ,Digital Universal Single LNB (Best Performance)
by STRONG
Price: $6.45
Features:
- -Best Technology from JAPAN with high Quality and Performance
- -Low Noise, High Gain
- -Ku Band-Waterproof
Product description
Input Frequency Range
LOW Band:10.7~11.7GHz
High Band:11.7~12.75GHz
Output Frequency Range
Low Band: 950 - 2050MHz
High Band: 1100 - 2150MHz
Input VSWR
2.5:1
Output VSWR
2.5:1
L.O. Frequency
Low Band 9.75GHz
High Band 10.6GHz
L.O. Stability
±2MHz @ (-40c~70c)
L.O. Phase Noise
-70dBc/Hz (1KHz Offset)
-90dBc/Hz (10KHz Offset)
-110dBc/Hz (100KHz Offset)
Conversion Gain
60dB (TYP)
Gain Flatness
±0.5dB/6MHz; ±2.5dB/IN BAND
Noise Figure
±0.3dB (Typ)
Image Rejection
50dB(Typ)
Output Power
+5dB (Min) (at 1dB gain compression)
Cross Polarization Discrimination
23dB(Min)
DC SUPPLY VOLTAGE
11~14.5V (V),15.5~22V (H)
SUPPLY CURRENT
130mA (MAX)
LOW/HIGH BAND SWITCHING
Low Band: 0Hz
HIGH BAND: 22KHz±4KHz
Output Connector
75? "F" type female
RELATIVE HUMIDITY
0%~95%
Operating Temperature
-30 °C to +70 °C
DSS922 DSS Dual LNBF for Anik F3 118.7 & 119 Satellite Dish
by DMS International
Price: $19.95
Features:
- Works with Dish Network Dish 500 to Receive 110/118/119 Satellites when used with another Legacy LNB
- Dual output allows you to use 2 receivers at the same time and recieve all the channels from both 119 and 118.7 at the same time.
- Designed to receive 119 & 118.7 at the same time
Product description
High gain DSS LNBF with excellent performance and low power consumption. Rectangular fitting allows mounting to most DSS dishes. 40mm throat allows easy mounting to other dishes with LNBF throat clamp. Works with FTA and Dish Network receivers. Designed to pick up the 110 and the 119 dish. When used on a Dish 500 with a Legacy LNB you can pick up the 110, 118, and the 119 Satellite from the same Dish.

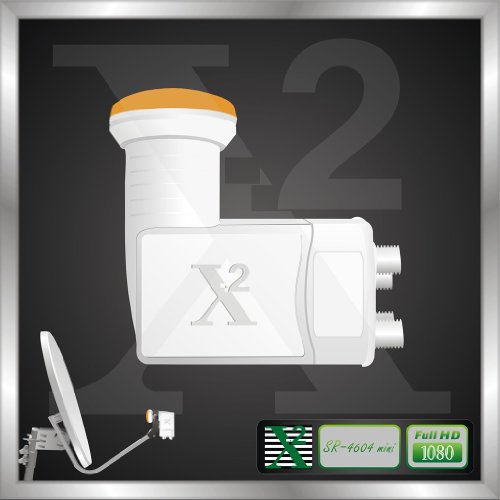

Quad Universal LNB with 4 Output
by X2 Technology
List price: $29.95
Price: $15.95
Features:
- Low Noise Figure 0.1dB
- Best Quality and Price, Warranty 1 Year
- Ku Band
SINGLE SATELLITE TV DISH LNB BRACKET
by ROC
Price: $1.09
Features:
- Features a 30 mm and a 40 mm circular LNB holder to fit just about any Ku LNB such as all Standard/Universal FTA LNBs, Dishnetwork and Directv LNB's
- Complete with all hardware including the bolt/nut to attach to the dish arm
- Use this LNB Bracket to add a LNB to any 18" DTV dish, Dishnetwork Dish, Super Dish, and 33", 36", or 39" FTA Dishes
Product description
Universal Single LNB Bracket is perfect if you want to add a LNB to any dish!
